Product Description:

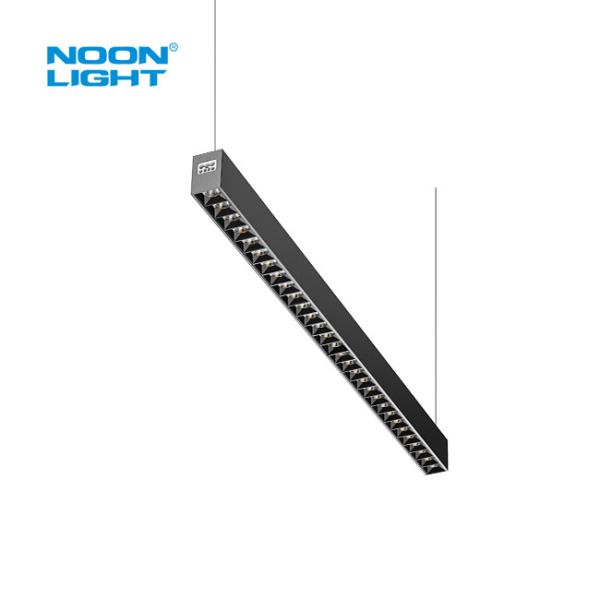

The LED trunking light system is a versatile lighting solution that comes with a unique architectural design featuring an aluminum housing. The housing not only provides a sleek and stylish appearance but also adds to the durability of the system. It has been designed to cater to a wide range of lighting needs, and it is effortless to install by either pendant, mounted or recessed installation.
Up & Down Lighting Available
The LED trunking light system features an up & down lighting capability, allowing it to provide a wider range of illumination options when compared to other lighting systems. As a result, it assures that different lighting requirements can be met, thus making it an ideal solution for different environments and uses.
Customizable Length and Combined Shapes
One of the best features of the LED trunking light system is that it offers customers the ability to customize the length and combined shapes of the lighting system. This feature caters to the specific lighting needs of different spaces, ensuring that every space has the perfect illumination with minimal wastage and maximum efficiency.
Efficient and Safe Lighting
The LED trunking light system has also been designed to be very low UGR <22 / UGR <19 for option, which means that the system is very efficient at reducing glare, thus reducing stress on the eyes. As a result, this makes the LED trunking light system a highly efficient and safe lighting solution for different environments.
Features:
The lighting system operates on a range of voltage inputs including 120~277VAC, 120~347VAC, and 220~240VAC. The system is designed to provide optimal illumination with power outputs of 30W at 60cm, 45W at 90cm and 60W at 120cm. With two light efficacy options of 125 Lm/W and 160 Lm/W, multiple beam angles can be chosen, ranging from 30°,60°,90°, to 120°.
The system is compatible with dimmer switches, including 0-10V (dual channel), Deli 2, and non-dim varieties. Additionally, for customization purposes, options for CRI>80, CRI>90 and CRI>95 are available. Motion sensors and emergency battery packs are also available to enhance the functionality of the lighting system.
The product measures 45mm in width and 65mm in height, making it large enough for industrial use. It has several certifications, including ETL, DLC, CE, RoHS, indicating that it meets all regulations for safe and effective performance. The system comes with a 5-year warranty to provide confidence in its long-term reliability.
American Standard:
| Size |
L(IN) |
W(IN) |
H(IN) |
| TLB-2FT |
23.75 |
1.81 |
2.56 |
| TLB-4FT |
43.75 |
1.81 |
2.56 |
Technical Parameters:
| Product Name: |
LED Trunking Lighting System |
| Input Voltage: |
120-277VAC / 120-347VAC / 220-240VAC |
| Luminous Efficacy: |
125LM/W(Max) |
| Lifespan: |
50,000hrs |
| Color Temperature: |
3000K / 3500K / 4000K / 5000K |
| Material: |
Aluminum + Acrylic/Iron +PS Lens |
| Luminous Flux: |
7500LM(Max) |
| CRI: |
>80 >90 >95 |
| Beam Angle: |
30°,60°,90°,120° |
| Warranty: |
5 Years
|
Accessories:
Z10 Receptacle
Features
· Standard Z10 regulated interface.
· Compact Size Allows More Fexibility In Luminaire Design.
· Easily Support Integration With Any Z10 Microwave & PIR Motion Sensor Controls.
· Specially Designed For Highbay Fixtures.
Applications:
Super market, office, commercial places, hospital, gym, warehouse, workshop, shopping mall
