Product Description:
The LED trunking light system is designed with versatility and ease of installation in mind. It can be used for pendent, mounted, or recessed installation, making it suitable for a variety of settings and applications.
In addition, the pre-wired trunking rails of the system allow for tool-free installation, which makes the process quick, easy, and hassle-free. This, combined with the easy maintenance feature of the system, ensures that it remains efficient and functional throughout its lifespan.
The system also offers various lighting beam angles, providing options and flexibility when it comes to setting the light and creating the desired atmosphere. Furthermore, the system comes with the option of up and down lighting, which further enhances its adaptability for different situations.
Finally, the LED trunking light system is customizable in terms of length and combined shapes, making it suitable for a wide range of applications, both big and small.
Features:
The voltage range options available for this product are 120~277VAC, 120~347VAC, and 220~240VAC. Depending on the voltage, the product can have different wattage capacities. Specifically, the Wattage @60cm can be -40W, while the Wattage @90cm is 60W, and the Wattage @120cm reaches up to 80W.
The light efficacy of the product is impressive, with two options available, namely 125Lm/W and 160 Lm/W. Additionally, the beam angle can be adjusted to fit different needs by selecting among the four options available: 30°, 60°, 90°, and 120°.
Different dimming options are also available for this product, including 0-10V (dual channel), Dali 2, and Non-dim. The wattage can also be adjusted in four levels, and the CCT tunnable in four levels as well. Another impressive feature is the CRI, which also has different options depending on the product variant, including CRI>80, CRI>90, and CRI>95.
Lastly, customers can choose the Montion sensor & emergency battery pack feature if needed for added safety.
Specification:
| Model No |
ETL |
Input Voltage |
Wattage |
LPW |
Lumen |
Beam Angle |
| N-TLA-2FT-40W-30 |
YES |
120-277VAC
120-347VAC
220-240VAC |
40W(Max) |
160LM/W(Max) |
6400LM(Max) |
120° |
| N-TLA-2FT-40W-DF |
125LM/W(Max) |
5000LM(Max) |
30°,60°,90° |
| N-TLA-3FT-60W-30 |
YES |
120-277VAC
120-347VAC
220-240VAC |
60W(Max) |
160LM/W(Max) |
9600LM(Max) |
120° |
| N-TLA-3FT-60W-DF |
125LM/W(Max) |
7500LM(Max) |
30°,60°,90° |
| N-TLA-4FT-80W-30 |
YES |
120-277VAC
120-347VAC
220-240VAC |
80W(Max) |
160LM/W(Max) |
12800LM(Max) |
120° |
| N-TLA-4FT-80W-DF |
125LM/W(Max) |
10000LM(Max) |
30°,60°,90° |

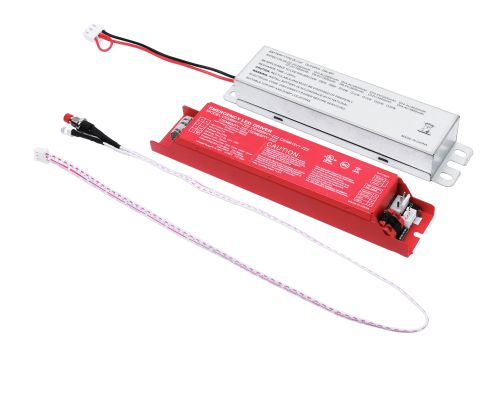

Accessories:
Specification:
Input Voltage:100~277Vac/347Vac 50/60Hz , Input
Current:100mA max. Input Power Rating:7W max. Output Voltage:25V~230Vdc
Warranty:5 Years
Ambient Temp:Li-ion:32~122°F(0~50°C)
Ni-MH: 41~149°F(5~65°C)
Applications:
Super market, office, commercial places, hospital, gym, warehouse, workshop, shopping mall
